Right-Click Prompt For New Effect Sub-menu

<< Click to Display Table of Contents >>

Navigation:  The Light-O-Rama Software Package > S5 Sequencer > Sequence Tab > Right-Click Context Menu >

Right-Click Prompt For New Effect Sub-menu

A variety of tools for adding new effects are available by right-clicking on the sequence grid and then opening the "Prompt For New Effect" sub-menu. As the name implies, you will be prompted for the effect first, and then the chosen effect will be inserted into the selected area of the grid.



From "Prompt For New Effect" sub-menu you can:



Create new Fade Down, Fade Up, Max Intensity, or Min Intensity effects

Modify Existing Effects

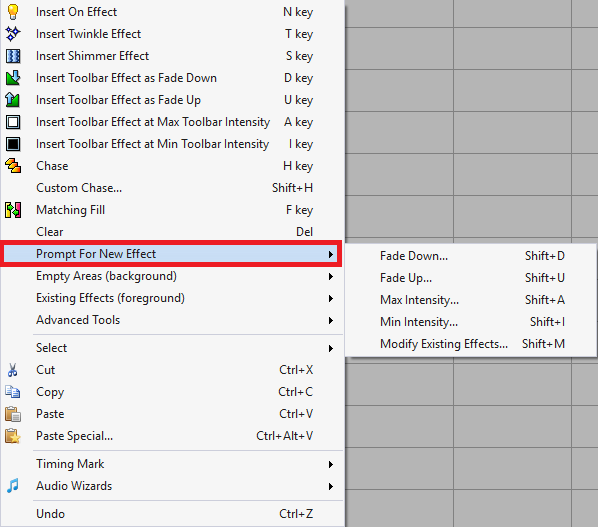

Right-click menu with the Prompt For New Effect sub-menu open

Right-click menu with the Prompt For New Effect sub-menu open





Fade Down, Fade Up, Max Intensity, Min Intensity



These items will open a dialog that allows you to choose the type of effect to be inserted. The particular dialog that is opened will depend on the type of grid rows in the selection. The dialog for each row type is shown below. After clicking the OK button in the dialog, the entire selection will be filled with the chosen effect at the intensity level specified by the menu item.



The result of Prompt For New Effect > Fade Down, and then choosing the Shimmer effect from the dialog

The result of Prompt For New Effect > Fade Down, and then choosing the Shimmer effect from the dialog



Regular Channels and Beat Channels



When used on Regular Channels and Beat Channels, these menu items will open the following dialog:



ChannelEffectModify



RGB Channels



When used on RGB Channels, these menu items will open the following dialog:



RGBChannelEffectModify



Motion Effect Rows



When used on Motion Effect Rows, these menu items will open the Motion Effect Generator.





Modify Existing Effects



This menu item will open the same dialogs shown above. However, after clicking the OK button in the dialog, only existing effects in the grid selection will be changed, and the intensity of those effects will remain the same.



For example, if the grid contained this:



Before Modify Existing Effects

Before Modify Existing Effects



Selecting Prompt For New Effect > Modify Existing Effects, then selecting Shimmer from the dialog, would result in this:



After Modify Existing Effects

After Modify Existing Effects
