Insert Symbol Fixture

This Light-O-Rama Visualizer dialog allows you to create a fixture that is shaped like a character from a symbol font.

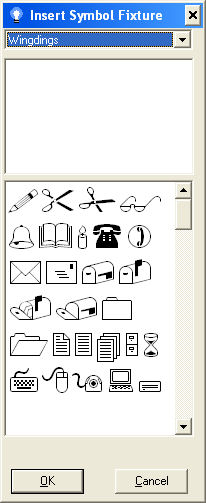

Insert Symbol Fixture

Font Name

Allows you to select the font from which you would like to select a character.

Sample Area

Shows a larger version of the selected character.

Selection Area

Allows you to select the character that will become a fixture.

# of Points

The Visualizer can only use fixtures that have less than 256 points.  If the selected character has more than 256 points, this field will be red, and the character cannot be used.  Otherwise, the area will be green.

OK

Create the fixture using the selected character as an outline.

Cancel

Close the dialog with no changes.
