Sequencing Grid commands for Smooth Effects (Shockwave, Spiral, Fan, and Sine Wave) in the Light-O-Rama SuperStar Sequencer:

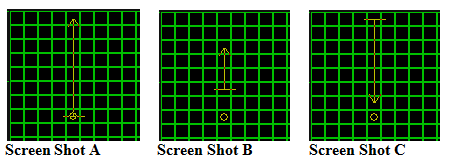

Use left mouse drag to set the center point and start angle.  For example, Screen Shot A was created with a left mouse drag that started at the circle and ended at the arrow head.



Use right mouse drag to modify the radius.  For example, Screen Shot B was created with a right mouse drag that started at the base of the line and ended at the arrow head of the line.



Use right mouse drag to modify the direction of the radius.  For example, Screen Shot C was created with a right mouse drag that started at the base of the line and ended at the arrow head of the line.
