Over the years, Light-O-Rama has released several different versions of MP3 directors. Here are some pictures and descriptions to help you determine which MP3 director you have and what it's functionality:
Generation 1 LOR MP3 Directors
Generation 1 MP3 directors include the DC-MP3 and the original mDM-MP3 director.
Your DC-MP3 director may be just a plain circuit board, in a metal case that only contains the director, or as part of an LOR1602 controller:

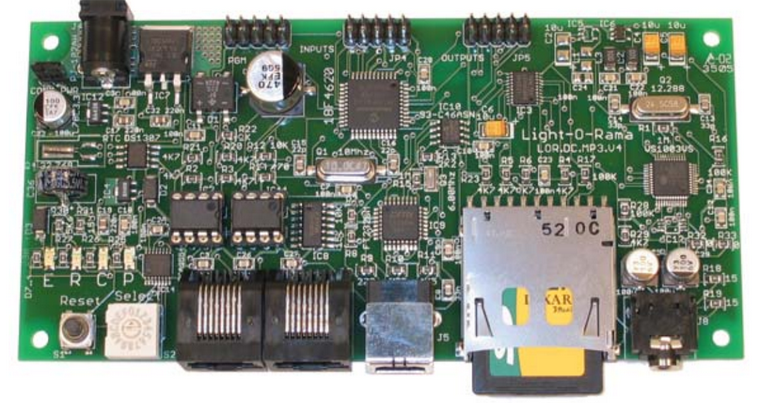

DC-MP3 Board

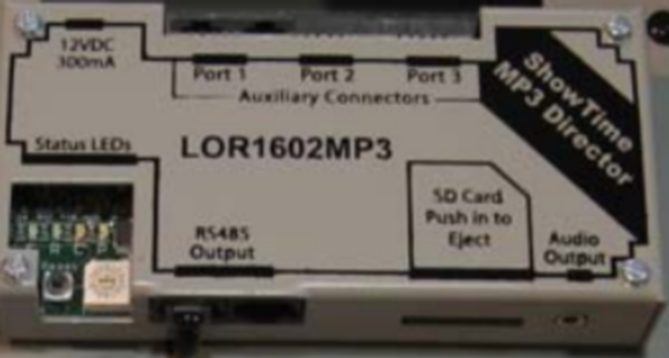

DC-MP3 in Case. Some cases were labeled DC-MP3 rather than LOR1602MP3.

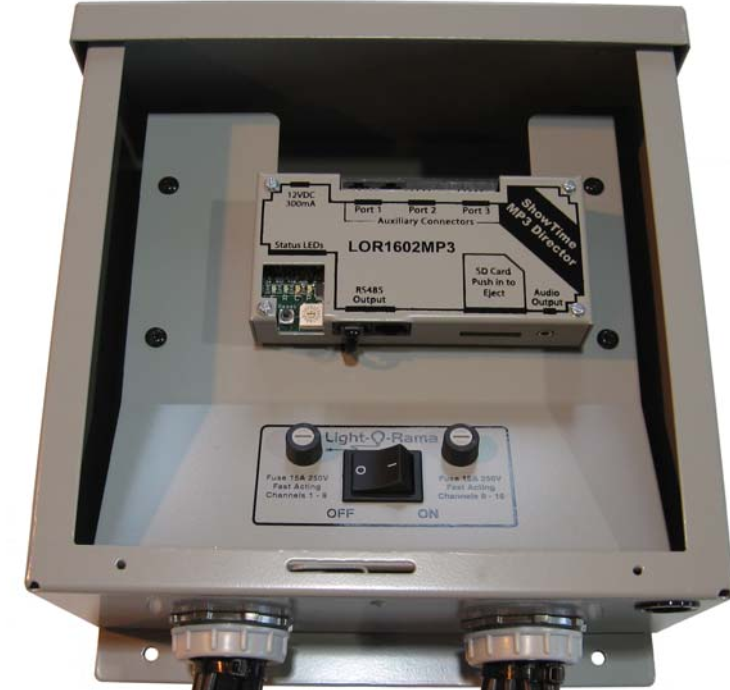

DC-MP3 as part of an LOR1602
The mDM-MP3 Mini Director is in a black plastic case. The mDM-MP3 and the uMP3g3 look similar. Be sure you carefully check the front of the unit. the uMP3g3 will explicitly say it is a uMP3g3, while the older mDM-MP3 will not. The uMP3g3 also has a power input connector that the mDM-MP3 does not.

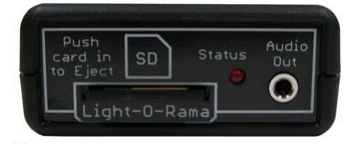

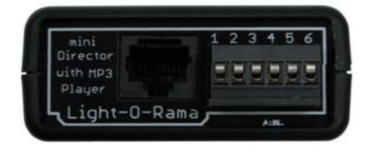

The Front and Back of an mDM-MP3 Mini Director. Carefully compare these pictures to the uMP3g3 to ensure you have identified the correct version that you have.
Generation 3 LOR MP3 Directors
Light-O-Rama did not manufacture any Generation 2 MP3 directors. Generation 3 MP3 directors include the G3-MP3 and the uMP3g3 Mini Director
The G3 MP3 director was sold in a metal case, or as part of an LOR160xMP3g3 controller.

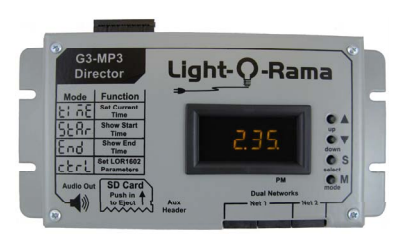

Stand Alone G3MP3 Director

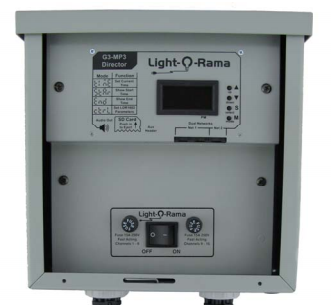

G3 MP3 Director as part of an LOR1602MP3g3. LOR1600MP3g3 similar. Note: the LOR160xg3 looks similar but does NOT have an MP3 Director

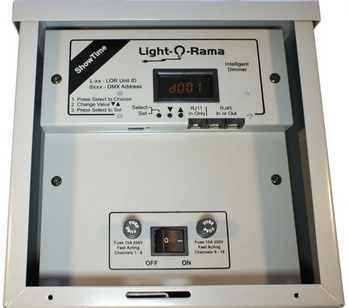

This is an LOR160xG3 that does not have an MP3 director.
The uMP3g3 was sold in a black plastic case. It looks similar to the older mDM-MP3 director but has significant differences.

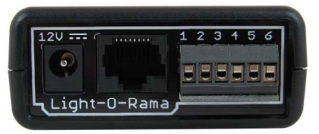

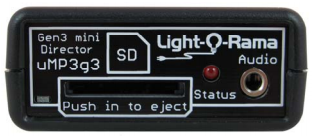

The Front and Back of the uMP3g3 Mini Director. To identify if you have a uMP3g3 or a mDM-MP3: the front of the uMP3g3 identifies it as such. On the back of the uMP3g3 there is a power socket, while on the mDM-MP3 there is none.
Generation 4 LOR MP3 Directors

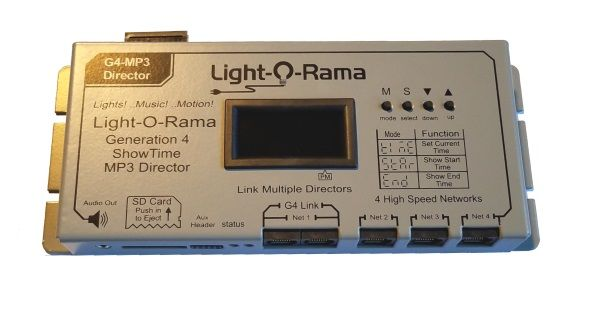

G4 MP3 Directors come in several variants, including the N4-G4-MP3 a metal case 4 port MP3 director with Director Link, 1 and 2 port black plastic directors without Director Link, and a 2 port adapter with Director Link will be available in the future.
Summary of Differences Between Directors
Director Name |
Generation |
Real Time Clock (Can have schedules) |
Number of Ports |
Supports LOR Enhanced Protocol |
Supports LOR 500K/1000K speed |
Supports Director Link |
Has Display |
DCMP3/LOR1602MP3 |
1 |
Yes |
1 |
No |
No |
No |
No |
mDM-MP3 (Mini) |
1 |
No |
1 |
No |
No |
No |
No |
G3MP3/LOR160xMP3g3 |
3 |
Yes |
2 |
Yes |
Yes |
No |
Yes |
uMP3-G3 (Mini) |
3 |
No |
1 |
Yes |
Yes |
No |
No |
N1uMP3G4 (mini) |
4 |
No |
1 |
Yes |
Yes |
No |
No |
N4-G4-MP3 |
4 |
Yes |
4 |
Yes |
Yes |
Yes |
Yes |
