This tab on the Light-O-Rama Visualizer's Prop Properties box allows you to change various properties assigned to a prop:
| • | Name: The name of this prop. |
| • | Comment: A comment area for your personal use. |
| • | Locked: Lock or unlock the prop. Locked props cannot be selected or edited in the main editing window. |
| • | Superstar: Pressing this button will bring up a new dialog allowing you to specify parameters that are specific to props being used in Superstar. |
| • | Export Prop File: This button allows you to export this prop into a file library. See Importing and Exporting Fixtures and Props for more information. |
| • | Fixture List: Click a row here to edit the fixtures assigned to this prop. Clicking a blank line will allow you to add a fixture. Clicking an existing line will bring up a list of fixtures, as well as a delete button ("X") to remove the selected fixture from the prop. If a fixture is already assigned to a prop, the fixture name is noted with an asterisk ("*") in the fixture list. Removing a fixture from a prop does not delete the fixture. |
| • | Change Order of Fixtures: Pressing this button brings up the Reorder Prop dialog. This dialog allows you to change the order of the fixtures assigned to a prop. you may want to change the order of fixtures before using the Channel Wizard. |

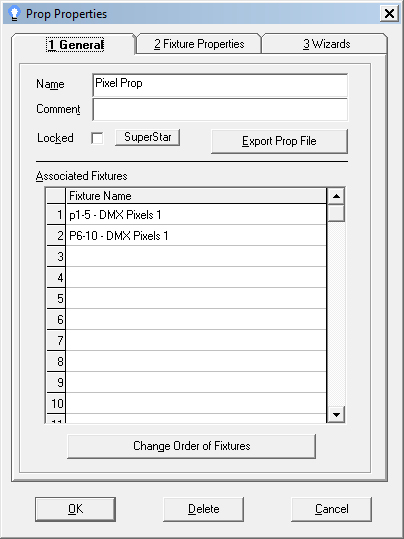

The Prop Properties General tab
